Run A Validator (TestNet)

How to join the Quip Network testnet as a validator, change your keys, and leave.

How validating works on Quip

  • Validators produce blocks and finalize them. Every validator key is a hybrid post-quantum key (a classical key plus FN-DSA-512), so the Polkadot.js portal (portal.aglais.quip.network) and the node have a few Quip-specific steps.
  • Joining is approved, not automatic: you bond AGLS (the testnet token), register your node’s keys, and declare that you want to validate. The Quip Foundation then approves your account, usually within 24 hours, and makes a seat for you. You are elected at the next validator election and join the active set one session (10 minutes) later.
  • Sessions last 10 minutes and an era is 6 sessions (1 hour). After approval you are usually active within 10 to 20 minutes, or up to about 70 minutes if no new era is forced.
  • Unbonded AGLS stays locked for 28 eras (about 28 hours) before you can withdraw it.
  • The testnet pays no validator rewards yet, and nominating is switched off.

What you need

  • A Linux server that can run a Quip node around the clock, with port 30333/tcp open to inbound connections. Baseline: 4 CPU cores (x86_64), 8 GB of RAM, a 200 GB SSD and about 1 TB of network traffic a month. At today’s activity a validator uses about 2 GB of RAM and well under one core, and its database grows by about 1.5 GB a day.
  • Docker, to run the Quip node software. The commands on this page use the image registry.gitlab.com/quip.network/quip-validator/quip-network-node with the tag v0.4.0.
  • The testnet chain spec, aglais-network.json. The Step 2 commands download it.
  • A shell with curl and jq.
  • A web browser for the Polkadot.js portal.
  • At least 6 AGLS: 5 to bond (the current minimum validator bond) and 1 for fees. One request to the faucet gives you 10.

Step 1: Create your stash account

  1. Generate a recovery phrase with the node software. This command prints only the phrase:

    docker run --rm --network none --log-driver none --entrypoint /usr/local/bin/quip-network-node \
  registry.gitlab.com/quip.network/quip-validator/quip-network-node:v0.4.0 \
  key generate --words 24 --output-type json | jq -r .secretPhrase

    The phrase controls your stash, so store it safely and never share it. You need it again for Stop, Unbond and Change session keys. Plain key generate also prints an Account ID and an SS58 address. Those belong to an ordinary key, not to your stash: never send AGLS to that address and never use that Account ID in Step 3. Make a new account for your stash rather than reusing one you already have, such as your miner’s.

  2. In the portal, open Accounts, choose From Quip mnemonic, paste the phrase and give the account a name. The address it shows is your stash address.

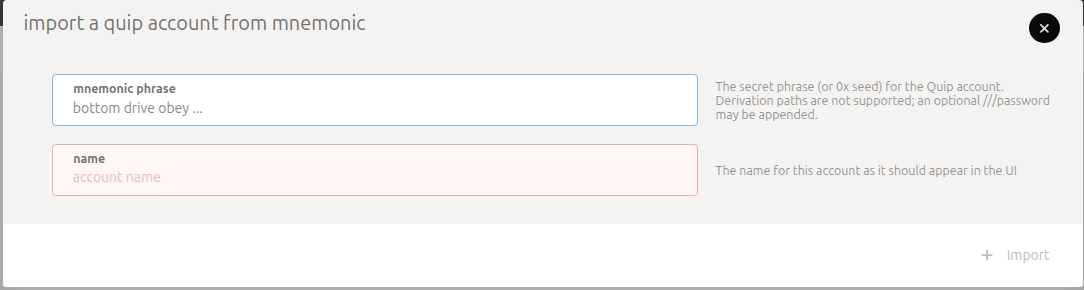

    The portal's dialog for importing a Quip account from a mnemonic, with a field for the recovery phrase, a field for the account name and the Import button

  3. Paste that address into the faucet and request AGLS. One request gives 10 AGLS, enough for the bond and the fees.

Warning The portal keeps an imported account only until you reload or close the page. Import the phrase again whenever you come back or reload.

Use only From Quip mnemonic. The Import and Export buttons on the Accounts page handle encrypted backup files, not Quip phrases.

Leave Settings → in-browser account creation on “Do not allow local in-browser account storage”. Allowing it adds the Account and From JSON buttons, which make ordinary keys that cannot sign Quip transactions. Pasting your Quip phrase there creates a different, non-Quip address and saves key material in the browser.

Step 2: Run your validator node

  1. Download the chain spec and start the node with --validator. Replace YOUR_NODE_NAME with a name for your node:

    mkdir -p "$HOME/quip-validator/data"
curl -fsSL https://gitlab.com/quip.network/nodes.quip.network/-/raw/main/chain-specs/aglais-network.json \
  -o "$HOME/quip-validator/chain-spec.json"
docker run -d --name quip-validator --restart unless-stopped --network host \
  -v "$HOME/quip-validator/data:/data" \
  -v "$HOME/quip-validator/chain-spec.json:/etc/quip/chain-spec.json:ro" \
  registry.gitlab.com/quip.network/quip-validator/quip-network-node:v0.4.0 \
  --chain=/etc/quip/chain-spec.json --base-path=/data --name=YOUR_NODE_NAME \
  --validator --unsafe-force-node-key-generation

    --network host keeps the node’s RPC on the server’s own 127.0.0.1, which Step 3 needs. Do not add -p 9944:9944, --rpc-external or --unsafe-rpc-external. The node keeps its database, network identity and session keys in $HOME/quip-validator/data, so keep that folder when you update or restart the container.

  2. Step 3 calls an unsafe RPC method, one that writes keys. The node accepts it only over 127.0.0.1, so send it only from the server itself, and never make your node’s unsafe methods reachable from other machines. A public RPC that serves only safe methods is fine. If you run the Run A Node stack (node manager or docker compose), use Session keys on the Run A Node stack instead of Step 3.2.

  3. Check that the node is on the testnet. This prints the hash of its first block, which must be 0x542a9915acf840b8940d35ca6de242f669a0c6e3b40f9a8d8c14b9bf7b8ebecb:

    curl -s -H 'Content-Type: application/json' \
  -d '{"id":1,"jsonrpc":"2.0","method":"chain_getBlockHash","params":[0]}' \
  http://127.0.0.1:9944 | jq -r .result

    A different hash, or a node that stays at block #0 with 0 peers, means a wrong chain spec.

  4. Wait until the node is fully synced: this shows "isSyncing": false and at least 1 peer, and the node’s log (docker logs quip-validator) shows “Idle” lines.

    curl -s -H 'Content-Type: application/json' \
  -d '{"id":1,"jsonrpc":"2.0","method":"system_health","params":[]}' \
  http://127.0.0.1:9944 | jq .result

Step 3: Generate session keys on your node

  1. Get your Account ID from the stash address the portal showed in Step 1:

    docker run --rm --network none --entrypoint /usr/local/bin/quip-network-node \
  registry.gitlab.com/quip.network/quip-validator/quip-network-node:v0.4.0 \
  key inspect --output-type json YOUR_ADDRESS | jq -r .accountId

    It prints your Account ID (starts with 0x). Pass the address that starts with 5, never the phrase: key inspect on the phrase gives a different, ordinary account, and the chain then rejects your keys in Step 4.

  2. Ask your node to generate session keys tied to your stash. It keeps the private keys in its keystore and returns the public keys plus an ownership proof:

    curl -s -H 'Content-Type: application/json' \
  -d '{"id":1,"jsonrpc":"2.0","method":"author_rotateKeysWithOwner","params":["ACCOUNT_ID"]}' \
  http://127.0.0.1:9944 > session-keys.json

    9944 is the default RPC port. Use yours if you changed it. The node accepts this command only while its RPC listens on localhost alone, which is the default and is intended. If you started the node with --unsafe-rpc-external or --rpc-methods=safe (the Run A Node stack does both), it refuses the command even from the same machine with “RPC call is unsafe to be called externally”. Do not work around that with --rpc-methods unsafe on a port others can reach. Keys from plain author_rotateKeys have no proof and cannot be registered on Quip.

  3. Check the result. The two numbers should be 3718 and 2926:

    jq -r '(.result.keys | length), (.result.proof | length)' session-keys.json

  4. Print the two values you will paste in Step 4, the keys and then the proof. Paste them in this order, with no spaces before or after:

    jq -r .result.keys session-keys.json
jq -r .result.proof session-keys.json

Session keys on the Run A Node stack

The Run A Node stack runs its validator with --unsafe-rpc-external --rpc-methods=safe, so it refuses Step 3.2. Instead, start a short-lived second node from the same image on the same server. It writes the new keys straight into your validator’s keystore, and your validator uses them without a restart. Run this on the server, with your Account ID from Step 3.1:

DATA=$(docker inspect -f '{{range .Mounts}}{{if eq .Destination "/data"}}{{.Source}}{{end}}{{end}}' quip-validator)
SPEC=$(docker inspect -f '{{range .Mounts}}{{if eq .Destination "/etc/quip/chain-spec.json"}}{{.Source}}{{end}}{{end}}' quip-validator)
KS="$DATA/chains/quip_testnet/keystore"
docker run -d --rm --name quip-keygen --network host --user "$(stat -c %u:%g "$KS")" \
  -v "$SPEC:/spec.json:ro" -v "$KS:/keystore" \
  --entrypoint /usr/local/bin/quip-network-node "$(docker inspect -f '{{.Image}}' quip-validator)" \
  --chain /spec.json --tmp --keystore-path /keystore \
  --rpc-port 9945 --listen-addr /ip4/127.0.0.1/tcp/30399 --no-prometheus
sleep 15
curl -s -H 'Content-Type: application/json' \
  -d '{"id":1,"jsonrpc":"2.0","method":"author_rotateKeysWithOwner","params":["ACCOUNT_ID"]}' \
  http://127.0.0.1:9945 > session-keys.json
docker stop quip-keygen

The second node listens only on 127.0.0.1 and removes itself when stopped. quip-validator is the validator container’s name in the Run A Node stack. Then continue with Step 3.3.

Step 4: Bond, register your keys and validate

In the portal, open Network → Staking → Accounts and choose + Validator.

  1. Setup Validator 1/2: pick your stash. The value bonded field starts with almost your whole balance: replace it with at least 5 and keep at least 1 AGLS unbonded, because later steps such as Stop, Unbond and Change session keys each cost a small fee that bonded funds cannot pay. Pick either Stash account option as the payment destination (there are no rewards yet). The on-chain bonding duration shows 1 day 4 hrs: that is how long funds stay locked after you unbond. Choose next.

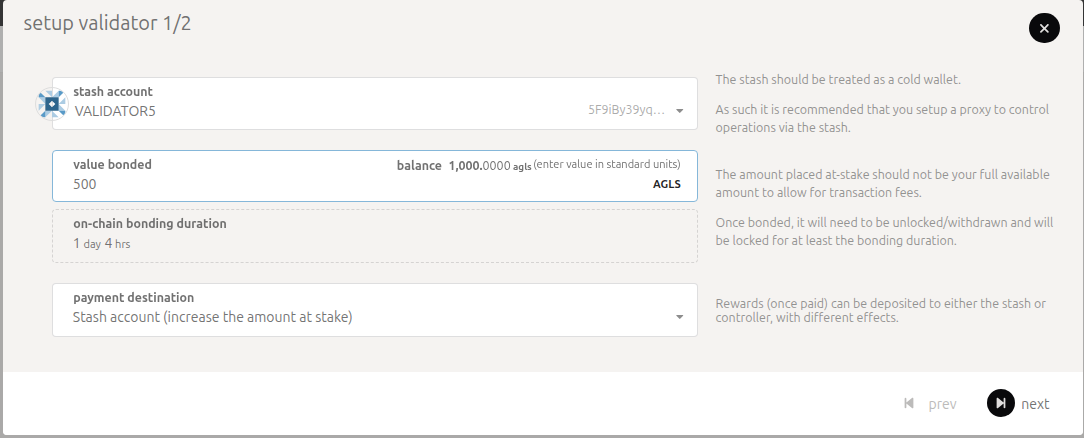

    Setup Validator 1/2 with a stash selected, 500 AGLS in value bonded, an on-chain bonding duration of 1 day 4 hrs and Stash account as the payment destination

  2. Setup Validator 2/2: paste the keys into Keys from rotateKeysWithOwner first, then the proof into Session key ownership proof. Changing the keys afterward empties the proof field, so paste the proof last. Leave allows new nominations as it is: nominating is switched off. Set your commission, then choose Bond & Validate and sign with your stash.

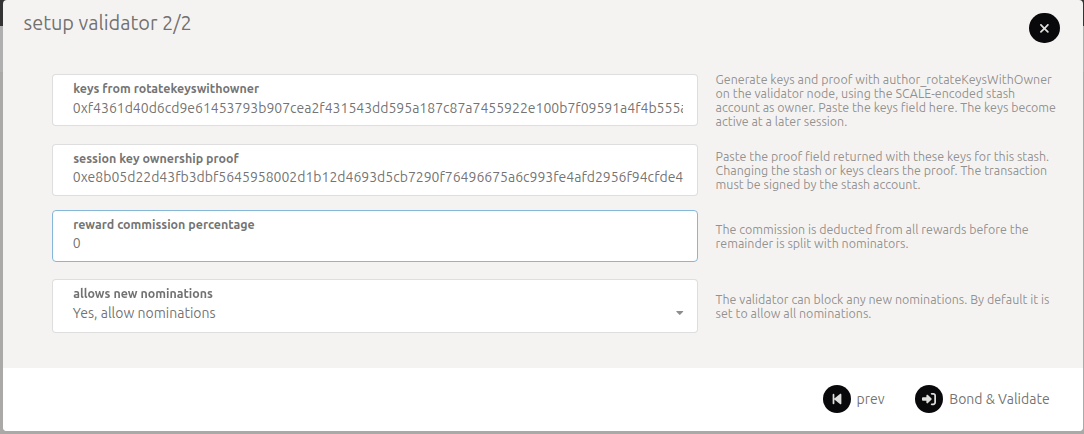

    Setup Validator 2/2 with the keys in Keys from rotateKeysWithOwner, the proof in Session key ownership proof, the commission and allows new nominations fields, and the Bond and Validate button

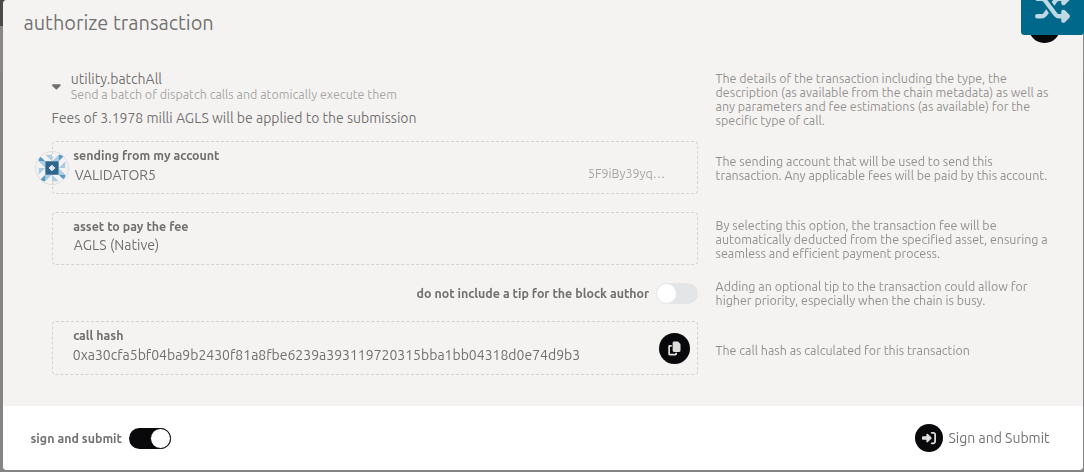

    The authorize transaction dialog for utility.batchAll, sent from the stash, with its fee in AGLS and the Sign and Submit button

  3. The portal confirms with a green utility.batchAll notice and a list of events that includes staking.Bonded and staking.ValidatorPrefsSet, and your stash shows Stop on Staking → Accounts.

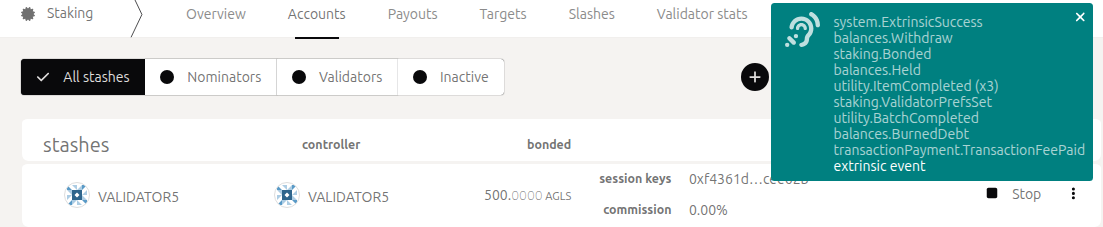

    Staking Accounts after Bond and Validate: the events notice lists staking.Bonded, staking.ValidatorPrefsSet and utility.BatchCompleted, and the stash row shows its session keys and the Stop button

  4. Your stash now appears on Staking → Overview when you switch the list to Waiting.

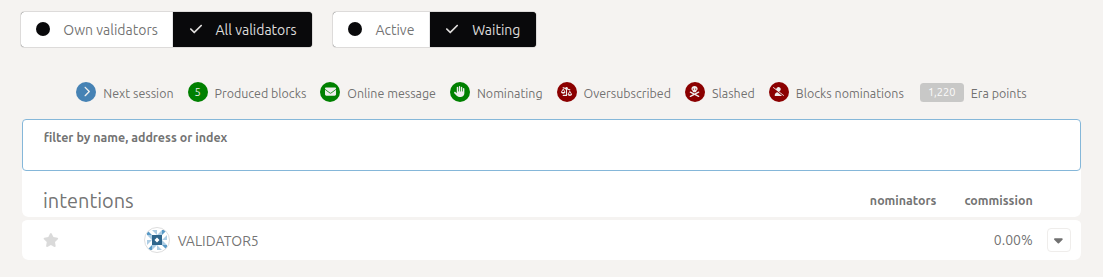

    Staking Overview with All validators and Waiting selected, listing the stash under intentions

Step 5: Wait for approval

You don’t need to send anything. The Quip Foundation approves the stashes listed under Waiting, in one vote that also adds a seat and starts a new era. Allow up to 24 hours. While you wait, check that your part is in place:

  • Staking → Overview, with the list switched to Waiting, shows your stash.
  • Staking → Accounts shows your stash with at least 5 AGLS bonded, its session keys and the Stop button.
  • Developer → Chain state: choose session and nextKeys, pick your stash and choose +. It shows your session keys. If it shows <none>, your keys are not registered: set them with Change session keys (step 3 of Change your session keys).
  • Your node stays synced, with at least 1 peer (Step 2.4).

After the vote, you are included in the next election.

Step 6: Check that you are active

  • Staking → Overview lists your stash among the active validators.
  • Network → Explorer shows blocks authored by your address.
  • Your node’s log shows lines like “Prepared block for proposing” and “Pre-sealed block”. Such a line means your node produced a block; Explorer shows whether it stayed in the chain.

You are usually active 10 to 20 minutes after the Foundation’s vote. Keep your node online (see If your node goes offline).

Change your session keys or move to a new server

  1. Start the new node (Step 2) and wait until it is fully synced. Keep the old node running.

  2. Run Step 3 on the new node.

  3. On Network → Staking → Accounts, open your stash’s menu (⋮) and choose Change session keys. In the Set Session Key dialog, paste the new keys first, then the proof, choose Set Session Key and sign with your stash.

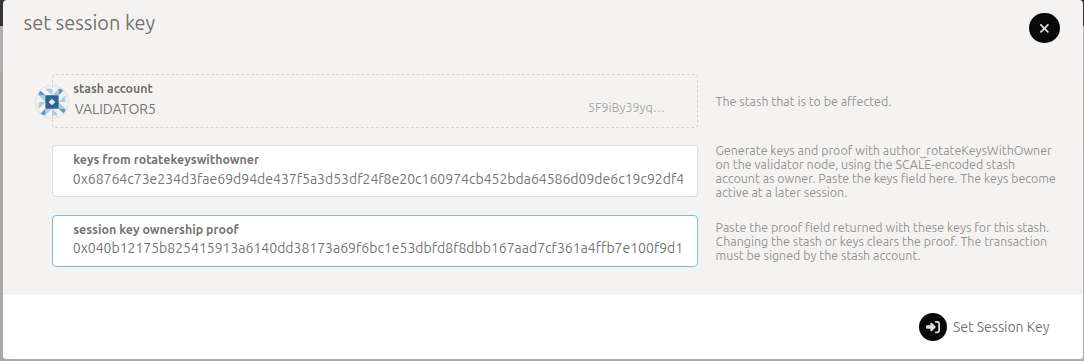

    The Set Session Key dialog for a stash, with the new keys in Keys from rotateKeysWithOwner, the proof in Session key ownership proof and the Set Session Key button

  4. Wait for two session changes (10 to 20 minutes). The new keys are queued at the first and take over at the second. The new node’s log then shows “Pre-sealed block” lines, and the old node stops producing blocks.

  5. Stop the old node. Never run two nodes with the same keys.

The old node’s last block comes just before the session change, and the new node’s first block just after it.

If your node goes offline

  • The network carries on without you. Blocks keep coming, a little slower because your slots stay empty.
  • Finality needs more than two thirds of the active validators online: 3 of 3, 3 of 4, 4 of 5. With fewer online, blocks are still produced but are not finalized until enough validators are back. Staking → Overview shows how many validators are active.
  • Keep your node online. If it stops producing blocks for 10 minutes or more, that counts as an outage. The first outage is recorded as a warning, and you keep your seat.
  • A second outage, or a first one that lasts more than 6 hours, gets your stash removed from the active set. The Foundation removes your approval and won’t approve that stash again, even if your node is back by then.
  • A restart of a few minutes, for example to update your node, doesn’t count, and neither do outages the network causes. To take your node down on purpose, see Take your node down for maintenance.

Take your node down for maintenance

To restart your server, update its operating system or take the node down for any other planned work, leave the active set first. Downtime after you have left does not count as going offline.

  1. On Network → Staking → Accounts, choose Stop on your stash. You leave the active set when the next era starts, within about 70 minutes. Keep your node running until Staking → Overview no longer lists you as active.
  2. Do the maintenance.
  3. Start the node and wait until it is fully synced (see Step 2).
  4. On Network → Staking → Accounts, choose Validate on your stash, set your commission and sign. Your approval and your bond stay in place, so you are a candidate at the next election and active again within about 70 minutes.

To move to a new server without a break, see Change your session keys or move to a new server instead.

Leaving

  1. On Network → Staking → Accounts, choose Stop on your stash. You leave the active set when the next era starts. If you choose Stop during an era’s last 10 minutes, the next era’s validators are already chosen, so you stay one more era (up to about 70 minutes). Keep your node running until Staking → Overview no longer lists you as active.

    A validating stash row on Staking Accounts with its session keys, commission and the Stop button

  2. From your stash’s menu (⋮) choose Unbond funds and enter the amount. Stop first: while you are still validating, an unbond must leave at least 5 AGLS bonded.

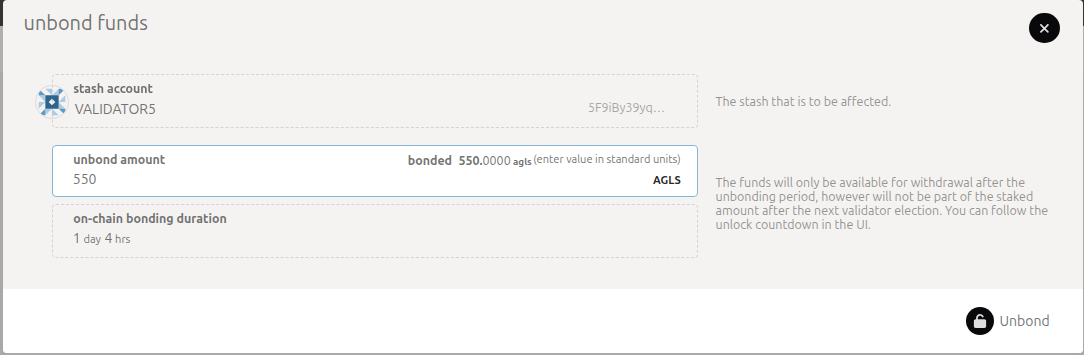

    The Unbond funds dialog for a stash, unbonding the whole bond, with an on-chain bonding duration of 1 day 4 hrs and the Unbond button

  3. The funds unlock after 28 eras (about 28 hours). Until then the stash’s row shows a clock icon next to the amount (hover it for the time left), and Withdraw unbonded funds stays grayed out.

  4. From the menu choose Withdraw unbonded funds. It starts working about 10 minutes before the countdown ends, because the chain counts the next era as soon as it is planned.

    The stash menu with Withdraw unbonded funds available, below Bond more funds and Rebond funds

  • Changed your mind while the countdown is still running? Rebond funds moves unlocking funds back into your stake. Its dialog is titled “Bond more funds”; the button says Rebond. Once the countdown has ended, withdraw first, then bond again with Bond more funds (or + Stash if you had unbonded everything). If you chose Stop, choose Validate again.

    A validating stash row with the Stop button, a clock icon next to the 100 AGLS being unbonded, and its tooltip: Unbonding 100.0000 AGLS, 17,370 blocks, 1 day 4 hrs

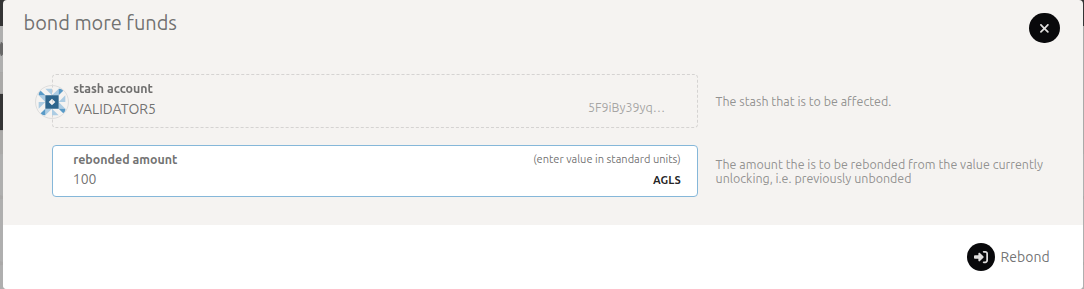

    The Rebond dialog, titled bond more funds, with 100 AGLS in rebonded amount and the Rebond button

  • Add to your stake at any time with Bond more funds.

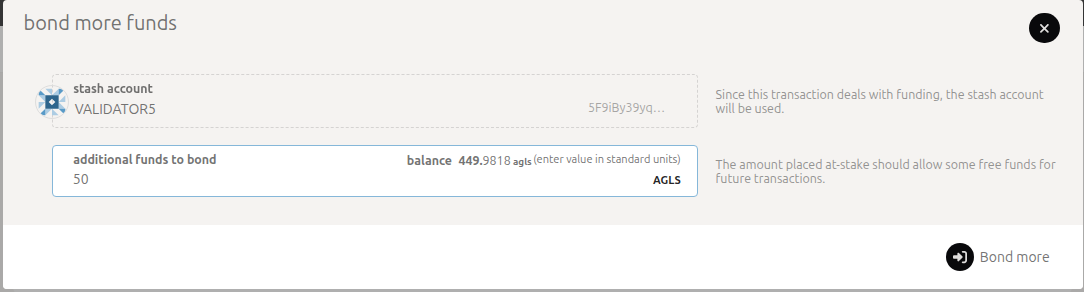

    The Bond more funds dialog with 50 AGLS in additional funds to bond and the Bond more button

  • Your Foundation approval stays after you leave. If you validate again later, you are a candidate at the next election. Seats go to the highest stakes: you rejoin if a seat is free, or if your stake is higher than the lowest active validator’s, who then drops out.

  • If the Foundation removes your approval, you leave the active set 10 to 20 minutes after its vote. Keep your node running until Staking → Overview no longer lists you as active. Your bond stays until you unbond it.

Known portal limitations

  • Inject session keys (advanced) does not work with Quip keys, and its “relay chain” warning does not apply here.
  • Imported accounts are lost when you reload or close the page. The Import and Export buttons do not take Quip phrases.
  • + Nominator fails, because nominating is switched off.
  • Payouts is empty, because there are no validator rewards yet.
  • On first load, the Staking summary can show wrong numbers such as “validators N / 0” or an era over 100%. Reload the page, then import your phrase again.
  • A validator whose commission is exactly 0 shows Validate instead of Stop. The portal never sends exactly 0 (it sends 1 per billion when you enter 0), but accounts set up outside the portal can have it. Choose Validate to set a commission first; Stop then appears.
  • The testnet has no separate controller account: your stash signs every step, and Change controller account stays grayed out.
